99-2062-02-08

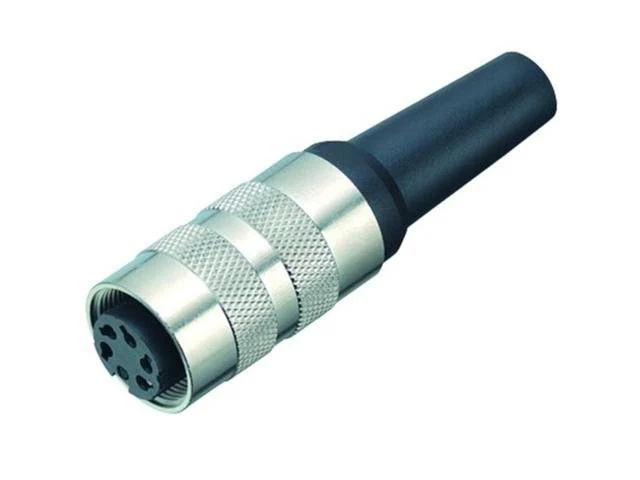

Circular Connector M16 Cable Female Straight 8 Pole Screw Lock 6mm Cable Entry IP40
M16 Cable Female Circular Connector
Specifications
| Connector design | Female cable connector |
| Type standard | DIN EN 61076-2-106 |
| Version | Connector socket straight |
| Connector locking system | screw |
| Termination | solder |
| Degree of protection | IP40 |
| Connection cross-section | max. 0.75 mm² / AWG 18 |
| Cable outlet | 6.0-8.0 mm |
| Temperature range from/to | -40 °C / 85 °C |
| Mechanical operation | > 500 Mating cycles |
| Weight (g) | 28.60 |
| Customs tariff number | 85369010 |
| Country of Origin | DE |
Electrical parameters
| Rated voltage | 60 V |
| Rated impulse voltage | 500 V |
| Rated current | 5.0 A |
| Insulation resistance | ≥ 1010 Ω |
| Pollution degree | 1 |
| Overvoltage category | I |
| Insulating material group | III |
| EMC compliance | shieldable |
| Shield connection | Solder lug |
Downloads
Additional Information
| Device | Connector |
| Type | M16 | Cable | Female | Circular |
| Cable | cable outlet 6 ~ 8 mm |
| Wire Range | 20 AWG 0.75mmsq |
| Degree of Protection | IP40 |
