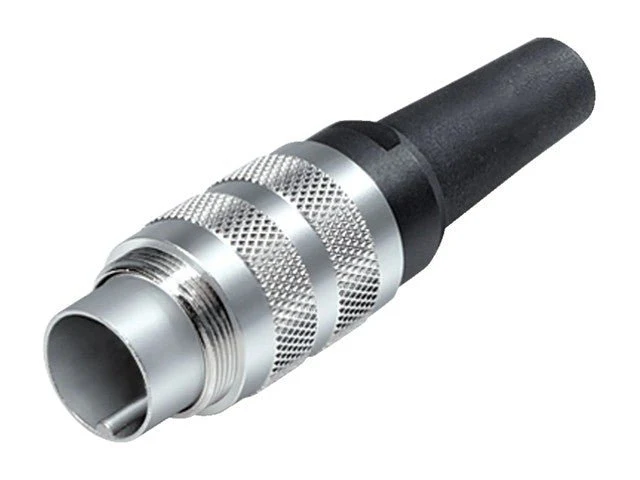

Connector design

cable connector

type standard

DIN EN 61076-2-106

Execution

Connector pin straight

Connector locking

screw

Connection type

crimping

Protection class

IP40

Cable outlet

6.0-8.0 mm

Limit temperature from / to

-40 °C / 100 °C

Mechanical life

> 500 mating cycles

Weight (g)

26.63

Customs tariff number

85369010

Country of origin

DE

Rated voltage

250 V

Rated impulse voltage

1500 V

Rated current

5.0 A

Insulation resistance

≥ 10 ^1 0 Ω

Degree of contamination

1

Overvoltage category

I

Insulating material group

III

EMC compatibility

shieldable

Shield connection

cable clamp

Housing material

Zinc die-cast nickel-plated

Material contact body

PBT (UL94 V-0)

Material Contact

depending on the crimp contact (accessory)

REACH SVHC

CAS 7439-92-1 (Lead)

SCIP number

b7c2cff7-543d-44cd-b127-ef2e10ad051b
