99-1436-910-05

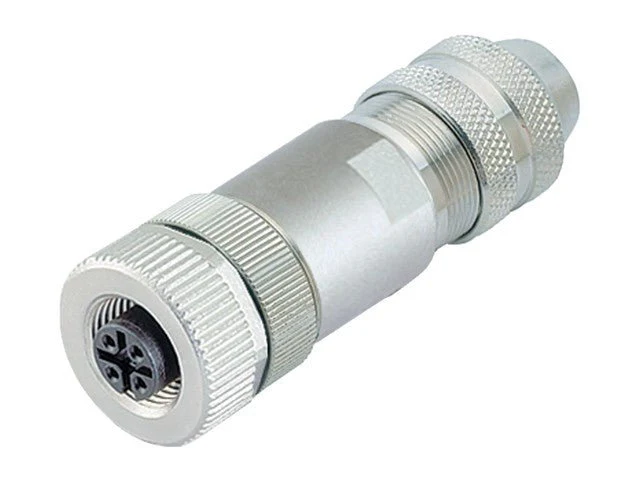

Circular Connector M12 B COD Cable Female Straight. 5 Pole Screw Terminal 8,5mm Cable Entry Ring Shield IP67
M12 B COD Cable Female Circular Connector
Specifications
| Connector design | Female cable connector |
| Type standard | DIN EN 61076-2-101 |
| Version | Connector socket straight |
| Connector locking system | screw |
| Termination | screw clamp |
| Degree of protection | IP67 |
| Connection cross-section | max. 0.75 mm² / AWG 18 |
| Cable outlet | 6.5-8.5 mm |
| Temperature range from/to | -40 °C / 85 °C |
| Mechanical operation | > 50 Mating cycles |
| Weight (g) | 46.19 |
| Customs tariff number | 85369010 |
| Country of Origin | HU |
Electrical parameters
| Rated voltage | 60 V |
| Rated impulse voltage | 1500 V |
| Rated current | 4.0 A |
| Insulation resistance | ≥ 1010 Ω |
| Pollution degree | 3 |
| Overvoltage category | II |
| Insulating material group | III |
| EMC compliance | shieldable |
| Shield connection | Shielding ring |
Downloads
Additional Information
| Device | Connector |
| Type | M12 | B COD | Cable | Female | Circular |
$8.21
Original: $27.36
-70%99-1436-910-05—
$27.36
$8.21Product Information
