99-0624-00-07

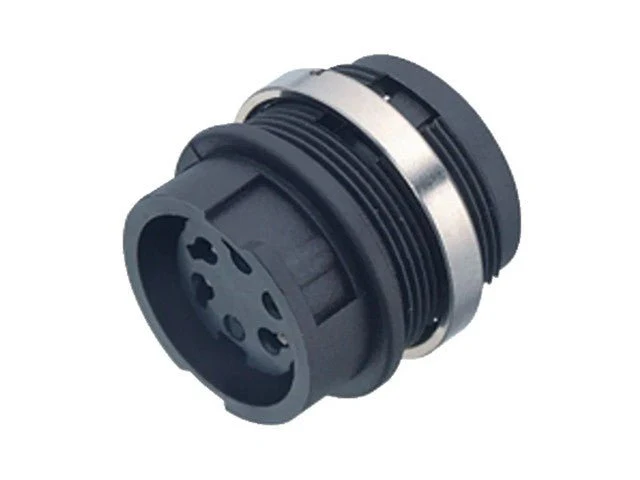

Circular Connector Bayonet Panel Female 7 Pole Solder Terminal IP40 5A 125V
Bayonet Panel Circular Connector
Specifications
| Connector design | flange socket |
| Execution | Connector socket straight |
| Connector locking | bayonet |
| Connection type | solder |
| Protection class | IP40 |
| Connection cross-section | max. 0.75 mm² / AWG 18 |
| Limit temperature from / to | -40 °C / 85 °C |
| Mechanical life | > 500 mating cycles |
| Weight (g) | 6.61 |
| Customs tariff number | 85369010 |
| Country of origin | DE |
Electrical characteristics
| Rated voltage | 125 V |
| Rated impulse voltage | 800 V |
| Rated current | 5.0 A |
| Insulation resistance | ≥ 10 1 0 Ω |
| Degree of contamination | 1 |
| Overvoltage category | I |
| Insulating material group | III |
| EMC compatibility | unshielded |
Materials
| Housing material | PA |
| Material contact body | PBT (UL94 V-0) |
| Material Contact | CuSn (bronze) |
| Contact surface | Ag (silver) |
| REACH SVHC | CAS 7439-92-1 (Lead) |
| SCIP number | 32fc9b85-6215-4ae0-829e-dd21baa244f0 |
Downloads
Additional Information
| Device | Connector |
| Type | Bayonet | Panel | Circular |
$8.68
99-0624-00-07—
$8.68
