99-0608-00-03
Circular Connector Bayonet Panel Female 3 Pole 3 DIN 6-8 mm Cable Outlet Solder Term IP40 7A 250V
Bayonet Panel Female Circular Connector
Specifications

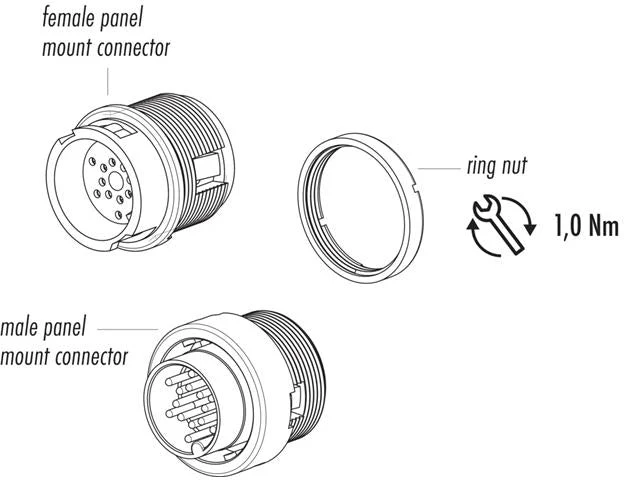

- Connector design : Female panel mount connector
- Version : Connector socket straight
- Connector locking system : Bayonet
- Termination : solder
- Degree of protection : IP40
- Cross-sectional area : max. 0.75 mmĀ² / AWG 18
- Temperature range from/to : -40 Ā°C / 85 Ā°C
- Mechanical operation : > 500 Mating cycles
- Weight (g) : 6.02
- Customs tariff number : 85369010
Electrical parameters
- Rated voltage : 250 V
- Rated impulse voltage : 1500 V
- Rated current (40 Ā°C) : 7.0 A
- Insulation resistance : ā„ 10Ā¹ā° Ī©
- Pollution degree : 1
- Overvoltage category : I
- Insulating material groupĀ : III
- EMC complianceĀ : unshielded
Downloads
Additional Information
| Device | Connector |
| Type | Bayonet Panel | Female | Circular |
$1.57
Original: $5.24
-70%99-0608-00-03ā
$5.24
$1.57Product Information
