99-0434-500-05

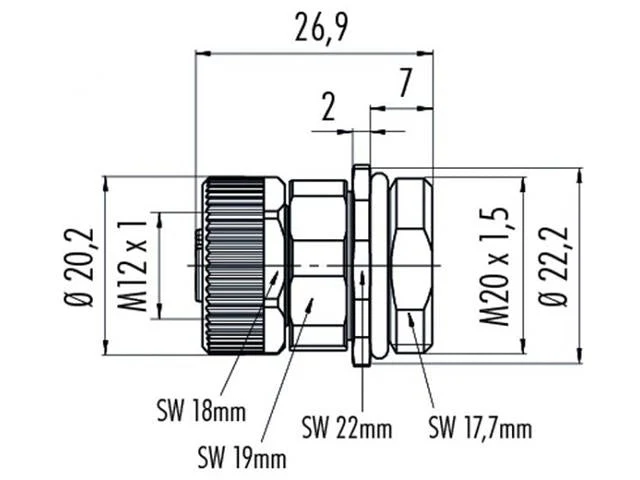

Circular Connector M12 A COD Panel Female 5 Pole Screw Clamp, PowER, M20 X 1,5 Fixing Thread 2A 125V IP67

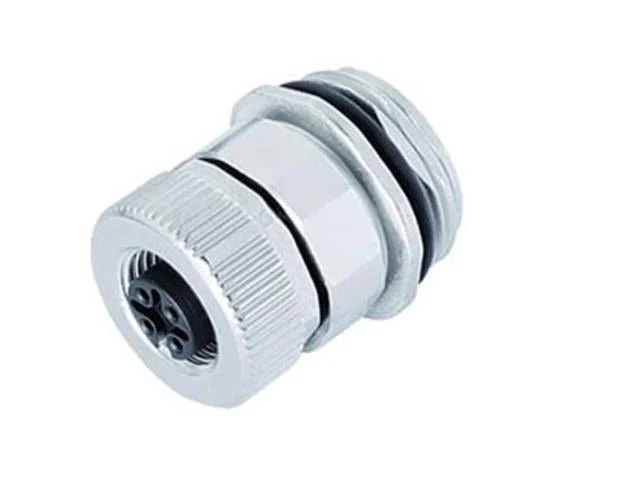

M12 A COD Panel Female Circular Connector
Specifications
- Connector Locking System : M12

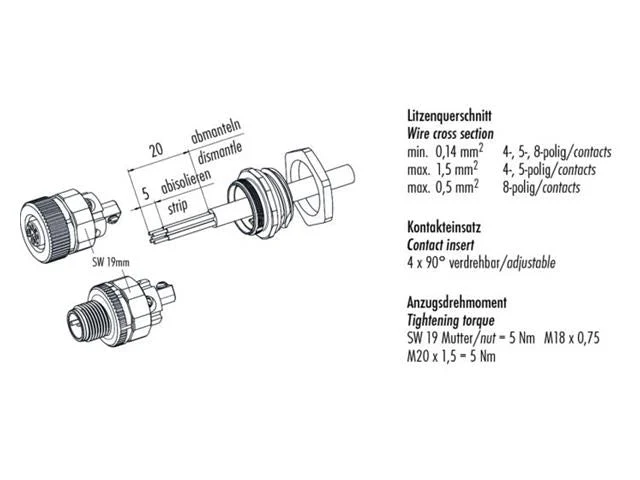

- Termination : removable screw
- Wire Gauge (AWG) : 16
- Degree of Protection : IP67
- Mechanical Operation : > 50 Mating cycles
- Upper Temperature °C : 85
- Lower Temperature °C : -40
- Rated Voltage: 250
- Rated Impulse Voltage : 2500
- Pollution Degree : 3
- Overvoltage Category : II
- Material Group: II
- Rated Current : 8 A
- Volume Resistivity : ≤ 3 mΩ
- Material of Contact : CuSn (Bronze), CuZn (Messing)
- Contact Plating : Au (gold)
- Material of Contact Body : PA
Downloads
Additional Information
| Device | Connector |
| Type | M12 | A COD | Panel | Female | Circular |
