99-0430-57-04

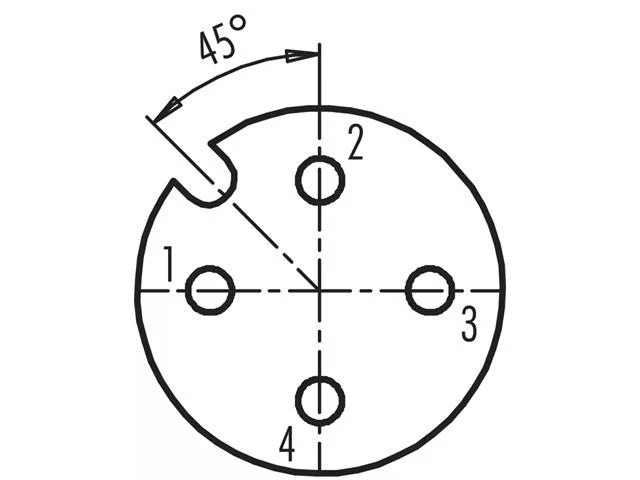

Circular Connector M12 A COD CABLE Female Stright. All Plastic 4 Pole Screw Terminal PG9 Cable Entry (Black Housing)
M12 A COD Cable Circular Connector
Specifications
- Connector design : Female cable connector
- Version : Connector socket straight
- Connector locking system : screw

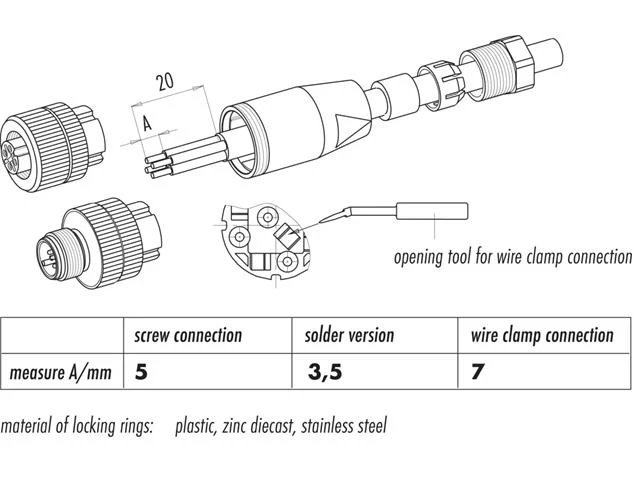

- Termination : screw clamp
- Degree of protection : IP67
- Cross-sectional area : max. 0.75 mm² / AWG 18
- Cable outlet : 6.0-8.0 mm
- Temperature range from/to : -40 °C / 85 °C
- Mechanical operation : > 50 Mating cycles
- Weight (g) : 13.45
- Rated voltage : 250 V
- Rated impulse voltage : 2500 V
- Rated current (40 °C) : 4 A (3 A UL)
- Insulation resistance : > 10⁸ Ω
- Pollution degree : 3
- Overvoltage category : II
- Insulating material group : III
- EMC compliance : unshielded
Material
- Housing material : PA
- Contact body material : PA
- Contact material : CuZn (brass)
- Contact plating : CuSnZn (Optalloy)
- Locking material : PA
- REACH SVHC : CAS 96-45-7 (Imidazolidine-2-thione) CAS 7439-92-1 (Lead)
- SCIP number 1696c02a-1fcd-4fc4-9cba-536174bbdfd9
Downloads
Additional Information
| Device | Connector |
| Type | M12 | A COD Cable | Circular |
