99-0429-10-04

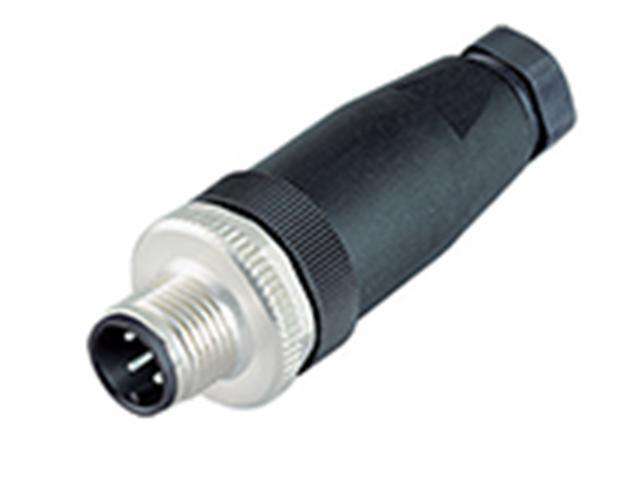

4 way M12 A-Coding Male Cable Circular Connector with 4~6mm cable outlet, plastic locking system and Screw termination without ring Nut
Overview
Features
Specification
- Locking System: M12 A-Coding
- Number of Contacts: 4
- Gender: Male
- Shell Material: Plastic
- Maximum Diameter (mm): 20
- Mounting Style: Cable-mounted
- Termination: Screw Termination
- Protection: IP 67
- Shielding: non-shielded
- Contact Plating: Gold
- Rated Voltage (V): 250
- Rated Current (A): 4
- Cable Outlet (mm): 4-6
- Wire Gauge (max AWG): 18
- Certifications: UL Recognized Component
- Form: Straight
Downloads
$4.68
Original: $15.59
-70%99-0429-10-04—
$15.59
$4.68Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
4 way M12 A-Coding Male Cable Circular Connector with 4~6mm cable outlet, plastic locking system and Screw termination without ring Nut
Overview
Features
Specification
- Locking System: M12 A-Coding
- Number of Contacts: 4
- Gender: Male
- Shell Material: Plastic
- Maximum Diameter (mm): 20
- Mounting Style: Cable-mounted
- Termination: Screw Termination
- Protection: IP 67
- Shielding: non-shielded
- Contact Plating: Gold
- Rated Voltage (V): 250
- Rated Current (A): 4
- Cable Outlet (mm): 4-6
- Wire Gauge (max AWG): 18
- Certifications: UL Recognized Component
- Form: Straight
