903-DC24V

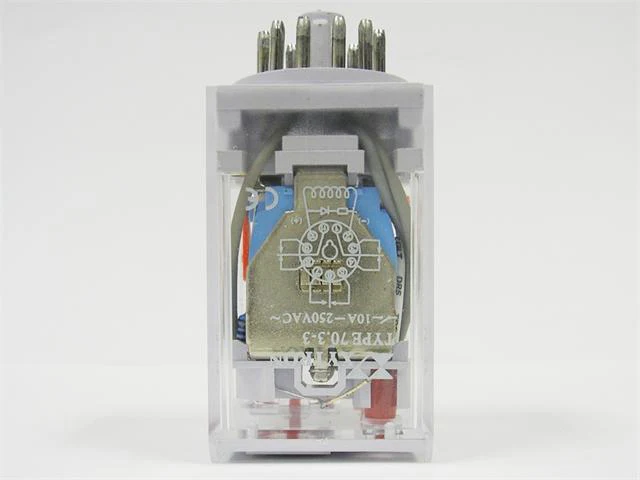

Medium Power 11 Pin Plug-In Relay With LED & Test Clip Form 3C (3c/o) 24VDC Coil 360 Ohm 10A 250VAC/30VDC Contacts
Medium Power 11 Pin Plug-In Relay
Downloads
Additional Information
| Device | Relay |
| Type | Medium Power | Plug-In |
| Highlights | Suitable Bases: PF113A-E ; 9021-E (BLUE) ; 9023-E (BLUE) ; US-11A. Note Old model number 703-DC24V. Also offer low cost 6013E-DC24V |
| Contact Form | Form 3C (3c/o) |
| Coil Rated Voltage | 24V |
| AC/DC Voltage | DC |
| Max. Switching Current | 10A |
| Electrical Rating | 250VAC/30VDC |
| Coil Resistance | 360Ω |
| No. of Pins | 11 Pin(s) |
$2.20
Original: $7.35
-70%903-DC24V—
$7.35
$2.20Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Medium Power 11 Pin Plug-In Relay With LED & Test Clip Form 3C (3c/o) 24VDC Coil 360 Ohm 10A 250VAC/30VDC Contacts
Medium Power 11 Pin Plug-In Relay
Downloads
Additional Information
| Device | Relay |
| Type | Medium Power | Plug-In |
| Highlights | Suitable Bases: PF113A-E ; 9021-E (BLUE) ; 9023-E (BLUE) ; US-11A. Note Old model number 703-DC24V. Also offer low cost 6013E-DC24V |
| Contact Form | Form 3C (3c/o) |
| Coil Rated Voltage | 24V |
| AC/DC Voltage | DC |
| Max. Switching Current | 10A |
| Electrical Rating | 250VAC/30VDC |
| Coil Resistance | 360Ω |
| No. of Pins | 11 Pin(s) |
