852510R14B19PNH052

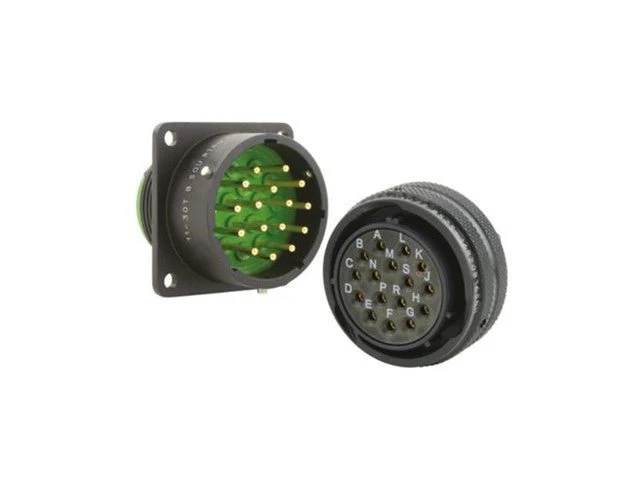

Circular Connector Bayonet Lock Square Flanged Receptacle 19P Male MIL C26482 with PCB Contacts (851-02E-14-19P5016) (71-570124-19P)
Bayonet Lock Square Flanged Circular Connector
Specifications
| Connector orientation |
N
|
| Connector type |
Receptacle
|
| Contact delivery |
Unloaded
|
| Contact gender |
Pin (Male)
|
| Contact type |
Crimp
|
| Coupling type |
1/3 Bayonet
|
| Layout |
19
|
| Plating |
Black Anodized
|
| Shell material |
Aluminium
|
| Shell size |
14
|
| Operating temperature - max |
200 °C
|
| Operating temperature - min |
-65 °C
|
| Receptacle type |
Square Flange Receptacle
|
| Number Of Contacts |
19
|
| Number of cavity #20 |
19
|
Additional Information
| Device | Connector |
| Type | Bayonet Lock | Square Flnge | Circular |
$33.12
