1 / 2
8020B
Miniature Toggle Switch • Form : SPDT-1-0-(1) • 5A-120 VAC • Right-Angle-PCB-ThruHole • Hor.Opr.Std.Lever Actuator
Overview
Features
Horizontal Right Angle Type
Specification
| Transition Style | Momentary | Latching |
| Actuator Style | Hor.Opr.Std.Lever |
| Termination | Right-Angle-Hor.Mount |
| Switch Circuit | SPDT-1-0-(1) |
| Electrical Rating | 5A-120 VAC |
| No.of Poles/Pins | 3Pin |

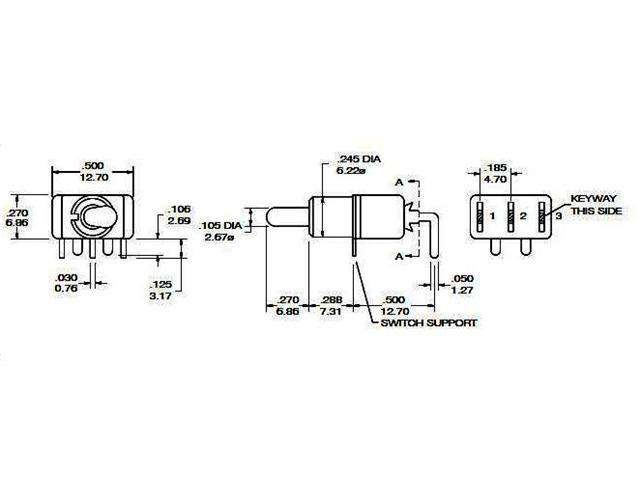

| Size | 12.70x6.86mm |
$0.40
Original: $1.32
-70%8020B—
$1.32
$0.40Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Miniature Toggle Switch • Form : SPDT-1-0-(1) • 5A-120 VAC • Right-Angle-PCB-ThruHole • Hor.Opr.Std.Lever Actuator
Overview
Features
Horizontal Right Angle Type
Specification
| Transition Style | Momentary | Latching |
| Actuator Style | Hor.Opr.Std.Lever |
| Termination | Right-Angle-Hor.Mount |
| Switch Circuit | SPDT-1-0-(1) |
| Electrical Rating | 5A-120 VAC |
| No.of Poles/Pins | 3Pin |
| Size | 12.70x6.86mm |
