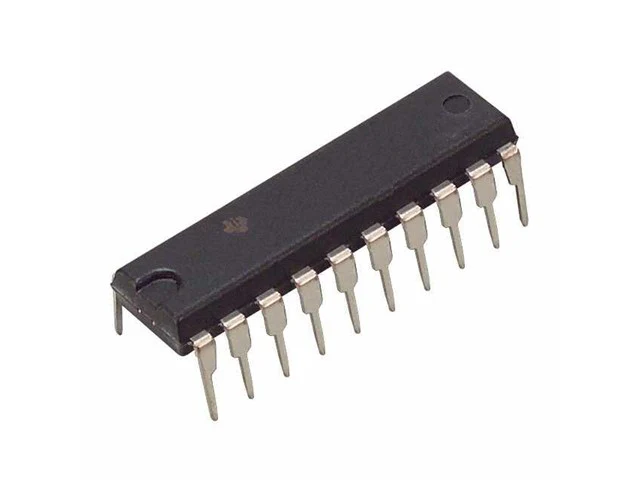

74AS574
Octal D-Type Edge-Triggered Flip-Flops With 3-State Outputs 20PIN DIP
Specifications
|
Type
|
D-Type
|
|
Output Type
|
Tri-State, Non-Inverted
|
|
Number of Elements
|
1
|
|
Number of Bits per Element
|
8
|
|
Clock Frequency
|
90 MHz
|
|
Max Propagation Delay @ V, Max CL
|
9ns @ 5V, 50pF
|
|
Trigger Type
|
Positive Edge
|
|
Current - Output High, Low
|
15mA, 48mA
|
|
Voltage - Supply
|
4.5V ~ 5.5V
|
|
Current - Quiescent (Iq)
|
116 mA
|
|
Operating Temperature
|
0°C ~ 70°C (TA)
|
|
Mounting Type
|
Through Hole
|
|
Supplier Device Package
|
20-PDIP
|
|
Package / Case
|
20-DIP (0.300", 7.62mm)
|
$3.24
74AS574—
$3.24
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Octal D-Type Edge-Triggered Flip-Flops With 3-State Outputs 20PIN DIP
Specifications
|
Type
|
D-Type
|
|
Output Type
|
Tri-State, Non-Inverted
|
|
Number of Elements
|
1
|
|
Number of Bits per Element
|
8
|
|
Clock Frequency
|
90 MHz
|
|
Max Propagation Delay @ V, Max CL
|
9ns @ 5V, 50pF
|
|
Trigger Type
|
Positive Edge
|
|
Current - Output High, Low
|
15mA, 48mA
|
|
Voltage - Supply
|
4.5V ~ 5.5V
|
|
Current - Quiescent (Iq)
|
116 mA
|
|
Operating Temperature
|
0°C ~ 70°C (TA)
|
|
Mounting Type
|
Through Hole
|
|
Supplier Device Package
|
20-PDIP
|
|
Package / Case
|
20-DIP (0.300", 7.62mm)
|
