74ALS30

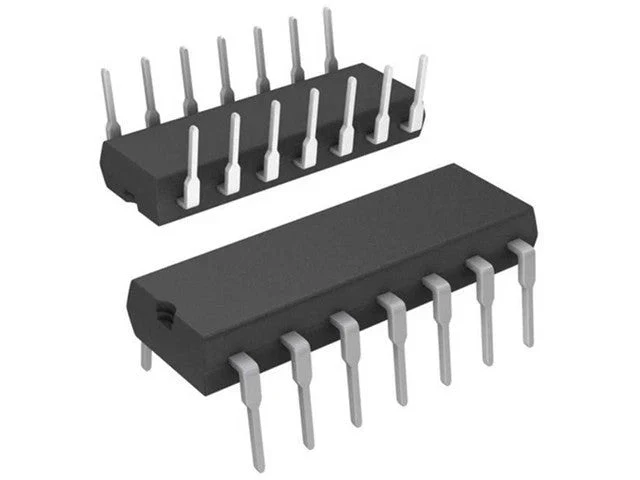

8-Input Positive-NAND Gates 14PIN DIP
Specifications
- Inputs (1, 2, 3, 4, 5, 6, 11, 12): These eight pins receive the logic signals.
- Output (8): This pin provides the NAND result.
- VCC (14): Positive power supply.
- GND (7): Ground.
- NC (9, 10, 13): No internal connection.
$0.07
Original: $0.23
-70%74ALS30—
$0.23
$0.07Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
8-Input Positive-NAND Gates 14PIN DIP
Specifications
- Inputs (1, 2, 3, 4, 5, 6, 11, 12): These eight pins receive the logic signals.
- Output (8): This pin provides the NAND result.
- VCC (14): Positive power supply.
- GND (7): Ground.
- NC (9, 10, 13): No internal connection.
