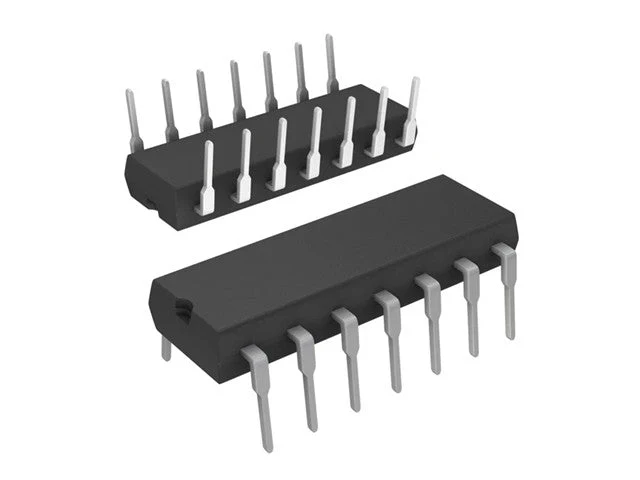

74ALS11
Triple 3-Input Positive-AND Gates 14PIN DIP
Specifications
|
Logic Type
|
AND Gate |
|
Number of Circuits
|
3
|
|
Number of Inputs
|
3
|
|
Voltage - Supply
|
4.5V ~ 5.5V
|
|
Current - Output High, Low
|
400µA, 8mA
|
|
Input Logic Level - Low
|
0.8V
|
|
Input Logic Level - High
|
2V
|
|
Max Propagation Delay @ V, Max CL
|
13ns @ 5V, 50pF
|
|
Operating Temperature
|
0°C ~ 70°C
|
|
Mounting Type
|
Through Hole
|
|
Supplier Device Package
|
14-MDIP
|
|
Package / Case
|
14-DIP (0.300", 7.62mm)
|
Additional Information
| Device | Positive-AND |
$0.26
Original: $0.85
-69%74ALS11—
$0.85
$0.26Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Triple 3-Input Positive-AND Gates 14PIN DIP
Specifications
|
Logic Type
|
AND Gate |
|
Number of Circuits
|
3
|
|
Number of Inputs
|
3
|
|
Voltage - Supply
|
4.5V ~ 5.5V
|
|
Current - Output High, Low
|
400µA, 8mA
|
|
Input Logic Level - Low
|
0.8V
|
|
Input Logic Level - High
|
2V
|
|
Max Propagation Delay @ V, Max CL
|
13ns @ 5V, 50pF
|
|
Operating Temperature
|
0°C ~ 70°C
|
|
Mounting Type
|
Through Hole
|
|
Supplier Device Package
|
14-MDIP
|
|
Package / Case
|
14-DIP (0.300", 7.62mm)
|
Additional Information
| Device | Positive-AND |
