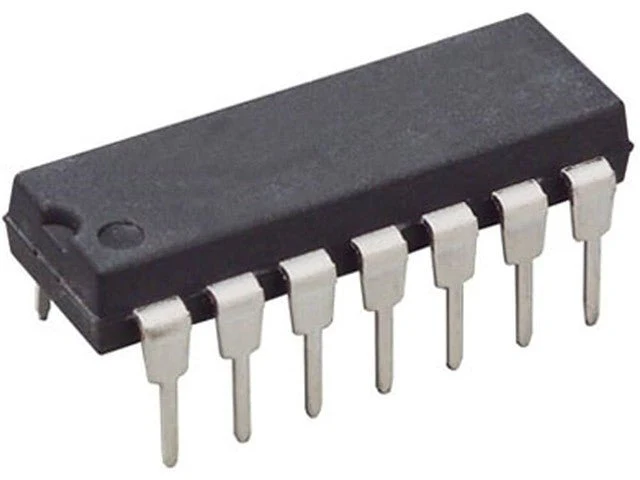

Buffer NAND Positive Quad 2-INP 14PD

Specifications

  • Function: Four independent 2-input NAND buffer gates.
  • Buffer Capability: Designed for high-drive capacity, allowing it to drive a higher number of other gates compared to standard NAND gates.
  • Logic: Positive-NAND (output is low only if all inputs are high).
  • Package: 14-pin Dual In-line Package (DIP).
  • Technology: Often found in TTL (7437) or Low-power Schottky (74LS37) technologies.
  • Operating Temperature: Typically 0Ā°C to 70Ā°C.
  • Supply Voltage (
    VCCcap V sub cap C cap C end-sub
    š‘‰š¶š¶
    ): Generally 4.75V to 5.25V.Ā
Common Applications:Ā
  • Buffer Registers: Ideal for increasing driving capability in digital circuits.
  • Bus Drivers: Used as I/O ports or bidirectional bus drivers.
  • TTL Interfacing: Suitable for driving higher fan-out TTL loads.Ā
