59135-2-T-02-A

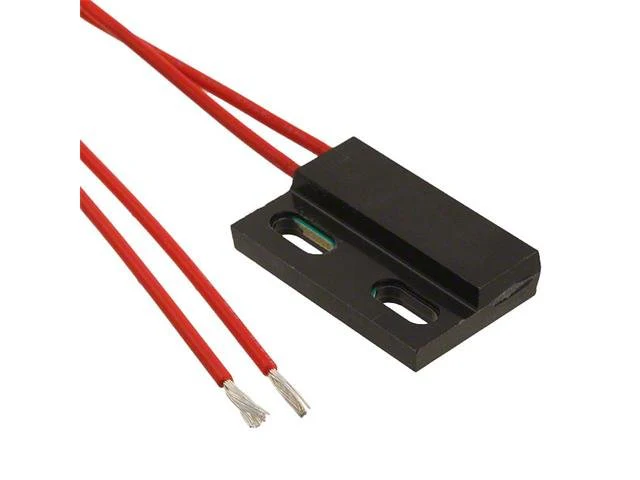

Reed Switch n/o Wide Temp/Hi Voltage 500mA @ 300VDC Max. with Mounting Flange and Flyleads
High Temperature Flange Mount Reed Switch
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Product Category: | Proximity Sensors |
| Magnetic | |
| 17.1 mm | |
| Screw | |
| SPST-NO | |
| Barrel Size: | 28.57 mm x 19.05 mm x 6.35 mm |
| Height: | 6.35 mm |
| Length: | 28.57 mm |
| Maximum Operating Temperature: | + 105 C |
| Minimum Operating Temperature: | - 20 C |
| Operating Supply Current: | 400 mA |
| Operating Supply Voltage: | 265 VAC, 300 VDC |
| Subcategory: | Sensors |
| Width: | 19.05 mm |
| Unit Weight: | 11.576 g |
Downloads
Additional Information
| Device | Switch |
| Type | High Temperature | Flange Mount | Reed |
$15.94
59135-2-T-02-A—
$15.94
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Reed Switch n/o Wide Temp/Hi Voltage 500mA @ 300VDC Max. with Mounting Flange and Flyleads
High Temperature Flange Mount Reed Switch
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Product Category: | Proximity Sensors |
| Magnetic | |
| 17.1 mm | |
| Screw | |
| SPST-NO | |
| Barrel Size: | 28.57 mm x 19.05 mm x 6.35 mm |
| Height: | 6.35 mm |
| Length: | 28.57 mm |
| Maximum Operating Temperature: | + 105 C |
| Minimum Operating Temperature: | - 20 C |
| Operating Supply Current: | 400 mA |
| Operating Supply Voltage: | 265 VAC, 300 VDC |
| Subcategory: | Sensors |
| Width: | 19.05 mm |
| Unit Weight: | 11.576 g |
Downloads
Additional Information
| Device | Switch |
| Type | High Temperature | Flange Mount | Reed |
