55.32.8.110.0000

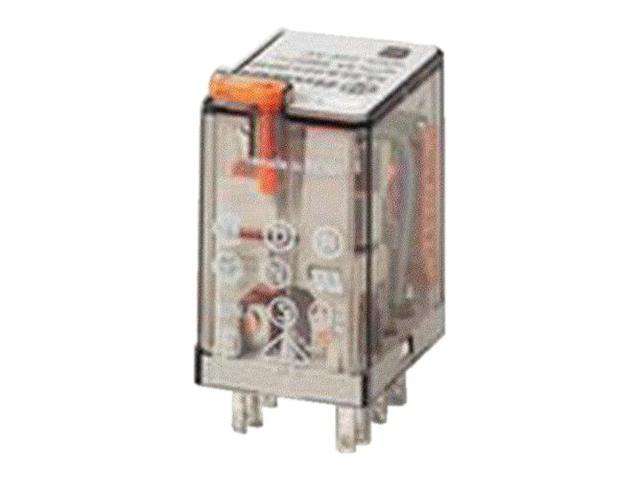

Medium - Hi Power Relay • Form 2C • VCoil= 110V AC • IMax Switching= 10A • RCoil= 4kΩ • Plug-In • Vertical Case

Overview

Features

Specification

  • Insulation Class B
    Model 5532 AC110V
    Contact Form Form 2C
    Size Category Std Size
    Size 28x21x36mm
    Termination Plug-In
    Coil Rated Voltage 110V
    AC/DC Voltage AC
    Max. Switching Current 10A
    Electrical Rating 10A/250VAC
    Coil Resistance 4kΩ
    Isolation Voltage 2KV
    Approvals UL/CSA/VDE/D/S
    Contact Material Ag
    No. of Pins 8 Pin(s)
    No. of Poles 2 Pole(s)
    Key Words 553281100000

Downloads

Datasheet Download
