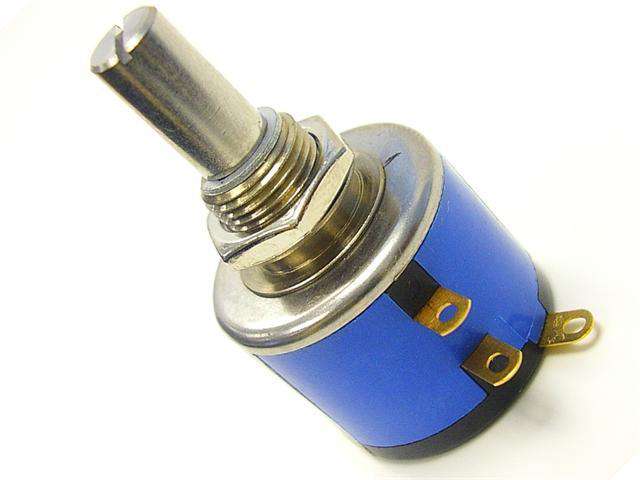

534-500R
Multiturn Wire Wound Rotary Control Potentiometer, Model : 534, Size 22.2mm dia • Solder Lug • 2W @ 70°C • 500Ω • ±5% • 10 Turns
Overview
Features
Specification
| Model | 534 |
| Size | 22.2mm dia |
| Termination | Solder Lug |
| Power Rating | 2W @ 70°C |
| Resistance Value | 500Ω |
| Tolerance | ±5% |
| Tolerance Code | J |
| Element Type | Wirewound |
| No. of Turns | 10 Turns |
| Mechanical Life | 1 000 000 Cycles |
| Mounting Style | Bush Mount |
| Shaft Diameter | 6.35mm |
| Shaft Type | Metal |
| Shaft Length | 20mm |
Downloads
$9.04
Original: $30.12
-70%534-500R—
$30.12
$9.04Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Multiturn Wire Wound Rotary Control Potentiometer, Model : 534, Size 22.2mm dia • Solder Lug • 2W @ 70°C • 500Ω • ±5% • 10 Turns
Overview
Features
Specification
| Model | 534 |
| Size | 22.2mm dia |
| Termination | Solder Lug |
| Power Rating | 2W @ 70°C |
| Resistance Value | 500Ω |
| Tolerance | ±5% |
| Tolerance Code | J |
| Element Type | Wirewound |
| No. of Turns | 10 Turns |
| Mechanical Life | 1 000 000 Cycles |
| Mounting Style | Bush Mount |
| Shaft Diameter | 6.35mm |
| Shaft Type | Metal |
| Shaft Length | 20mm |
