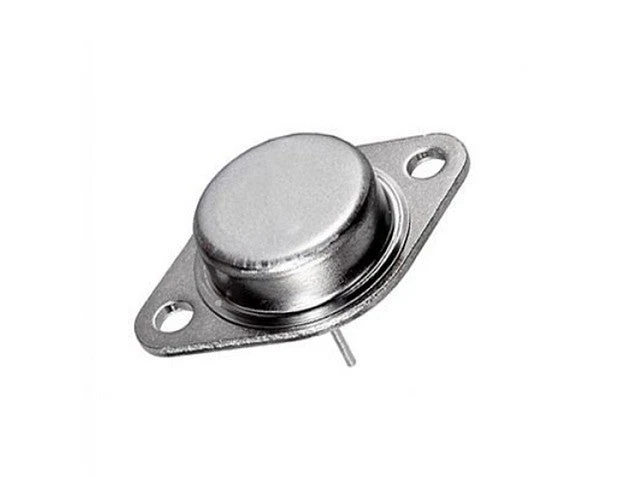

2SA746

Product image 1

2SA746

P 80V 10A 100W 15MHZ

P 80V 10A 100W 15MHZ

Specifications

  • Type: PNP
  • Collector-Emitter Voltage, max: -80 V
  • Collector-Base Voltage, max: -80 V
  • Emitter-Base Voltage, max: -6 V
  • Collector Current − Continuous, max: -10 A
  • Collector Dissipation: 100 W
  • DC Current Gain (hfe): 30
  • Transition Frequency, min: 15 MHz
  • Operating and Storage Junction Temperature Range: -65 to +150 °C
  • Package: TO-3
$0.13

Original: $0.44

-70%
2SA746—

$0.44

$0.13

Product Information

Shipping & Returns

Description

P 80V 10A 100W 15MHZ

P 80V 10A 100W 15MHZ

Specifications

  • Type: PNP
  • Collector-Emitter Voltage, max: -80 V
  • Collector-Base Voltage, max: -80 V
  • Emitter-Base Voltage, max: -6 V
  • Collector Current − Continuous, max: -10 A
  • Collector Dissipation: 100 W
  • DC Current Gain (hfe): 30
  • Transition Frequency, min: 15 MHz
  • Operating and Storage Junction Temperature Range: -65 to +150 °C
  • Package: TO-3
