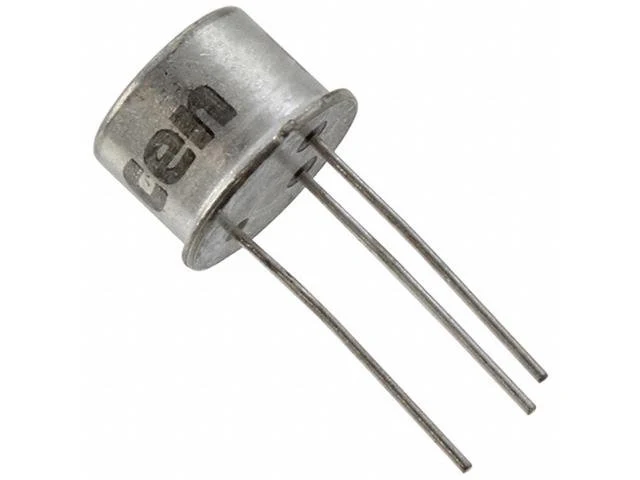

2N5320
N 100V 100V 2A 30/90 TO39
N 100V 100V 2A 30/90 TO39 Transistor
Specifications
|
Transistor Type
|
NPN |
|
Current - Collector (Ic) (Max)
|
2 A
|
|
Voltage - Collector Emitter Breakdown (Max)
|
75 V
|
|
Vce Saturation (Max) @ Ib, Ic
|
500mV @ 50mA, 500mA
|
|
Current - Collector Cutoff (Max)
|
500nA (ICBO)
|
|
DC Current Gain (hFE) (Min) @ Ic, Vce
|
30 @ 500mA, 4V
|
|
Power - Max
|
10 W
|
|
Frequency - Transition
|
50MHz
|
|
Operating Temperature
|
-65°C ~ 200°C (TJ)
|
|
Mounting Type
|
Through Hole
|
|
Package / Case
|
TO-205AD, TO-39-3 Metal Can
|
Downloads
Additional Information
| CatGroup | Transistor |
| Device | Transistor |
$0.35
2N5320—
$0.35
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
N 100V 100V 2A 30/90 TO39
N 100V 100V 2A 30/90 TO39 Transistor
Specifications
|
Transistor Type
|
NPN |
|
Current - Collector (Ic) (Max)
|
2 A
|
|
Voltage - Collector Emitter Breakdown (Max)
|
75 V
|
|
Vce Saturation (Max) @ Ib, Ic
|
500mV @ 50mA, 500mA
|
|
Current - Collector Cutoff (Max)
|
500nA (ICBO)
|
|
DC Current Gain (hFE) (Min) @ Ic, Vce
|
30 @ 500mA, 4V
|
|
Power - Max
|
10 W
|
|
Frequency - Transition
|
50MHz
|
|
Operating Temperature
|
-65°C ~ 200°C (TJ)
|
|
Mounting Type
|
Through Hole
|
|
Package / Case
|
TO-205AD, TO-39-3 Metal Can
|
Downloads
Additional Information
| CatGroup | Transistor |
| Device | Transistor |
