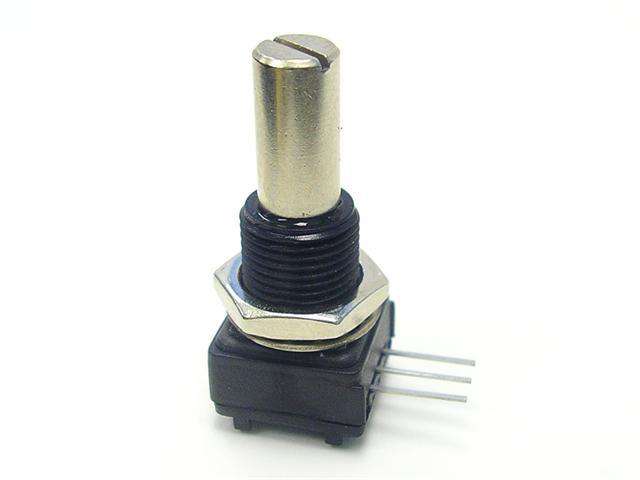

249-910-500K
Single turn Cermet Rotary Control Potentiometer, Model : 249, Size 12.7mm Sq. • PCB • 1W @ 70°C • 500kΩ • ±10% • 1 Turn 295°
Overview
Features
Specification
| Model | 249 |
| Size | 12.7mm Sq. |
| Termination | PCB |
| Power Rating | 1W @ 70°C |
| Resistance Value | 500kΩ |
| Tolerance | ±10% |
| Tolerance Code | K |
| Element Type | Cermet |
| No. of Turns | 1 Turn 295° |
| Mechanical Life | 25 000 Cycles |
| Mounting Style | Bush Mount |
| Shaft Diameter | 6.35mm |
| Shaft Type | Metal |
Downloads
$8.65
Original: $28.83
-70%249-910-500K—
$28.83
$8.65Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Single turn Cermet Rotary Control Potentiometer, Model : 249, Size 12.7mm Sq. • PCB • 1W @ 70°C • 500kΩ • ±10% • 1 Turn 295°
Overview
Features
Specification
| Model | 249 |
| Size | 12.7mm Sq. |
| Termination | PCB |
| Power Rating | 1W @ 70°C |
| Resistance Value | 500kΩ |
| Tolerance | ±10% |
| Tolerance Code | K |
| Element Type | Cermet |
| No. of Turns | 1 Turn 295° |
| Mechanical Life | 25 000 Cycles |
| Mounting Style | Bush Mount |
| Shaft Diameter | 6.35mm |
| Shaft Type | Metal |
