1598BGY

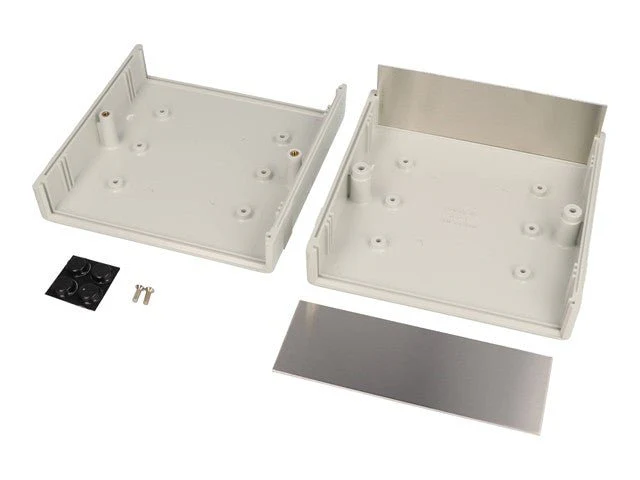

ABS Enclosure 134X135X50MM IP54 Aluminium End Plates
ABS Enclosure Aluminium End Plates
Feature(s)
- Desk top electronic instrument enclosure, ideally suited for mounting printed circuit boards.
- Molded from flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).
- Designed to meet IP54.
- Two sets of vertical 1.5 mm (0.062”) P.C. board guides are molded into case halves front and rear.
- Front and rear panels are 1.6 mm (0.064”) brushed aluminum with protective paper on one side.
- Enclosure halves are secured with M3 x 0.5” x 10 mm (0.39”) Phillips machine screws threaded into tapped integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.
- Integral horizontal P.C. card mounts on Eurocard centers.
Specifications
| Size L x W x H | 5.3 in x 5.3 in x 2 in (135 mm x 135 mm x 51 mm) |
|---|---|
| Shipping Weight | 0.53 lbs (0.24 kg) |
| Packaging Type | shrink wrap |
| Material | ABS Plastic |
| Color | Light Gray |
| Flame Rating | UL94 V-0 |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | Instrument Case |
| Max. P.C. Board Length (mm) | 122.04 |
| Max. P.C. Board Width (mm) | 122.3 |
Downloads
Additional Information
| Device | Enclosure |
| Type | ABS | Aluminium | End Plates |
| Highlights | Aluminium End Plates |
$5.65
Original: $18.83
-70%1598BGY—
$18.83
$5.65Product Information
