1591GSBK

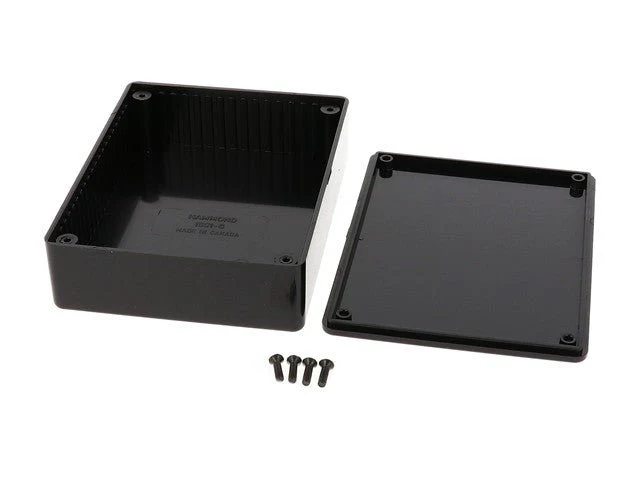

Polystyrene Enclosure 121X91X34MM Black IP54
Polystyrene Enclosure Black IP54
Feature(s)
- Ideally suited for vertical mounting of printed circuit boards (internal side walls include molded in card guides - see photo to the right).
- Integral card guides accept 1.5 mm (0.062”) P.C. cards.
- Lap joint construction provides protection against access of dust and splashing water.
- Designed to meet IP54.
- Standard versions are molded from easy to machine flame retardant ABS plastic which carries a UL flammability rating of 94V-0.
- Economy versions are molded from general purpose (not flame-retardant) plastic.
- On standard versions the lid is secured with M3 x 10 mm Phillips machine screws, threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required.
- Economy versions are assembled with self tapping screws into fully plastic posts.
- Black enclosures include black screws, while all others include standard nickel finish screws.
- Replacement screws available in packs of 100; 1591MS100 (nickel plated) or 1591MS100BK (black)
Specifications
- Size L x W x H : 4.74 in x 3.69 in x 1.34 in (120 mm x 94 mm x 34 mm)
- Shipping Weight : 0.19 lbs (0.09 kg)
- UNSPSC : 39121301
- UPC : 623980557489
- REACH Compliant : Yes
- RoHS Compliant : Yes
- Material : ABS Plastic
- Color : Black
- Flame Rating : UL94 HB
- IP Rating : IP54
- Packaging : shrink wrap
- Product Category : Enclosures
- Type : general purpose, flanged
Downloads
Additional Information
| Device | Enclosure |
| Type | Polystyrene | Black | IP54 |
