1591DGY
ABS Enclosure 150X80X52 Grey
Feature(s)

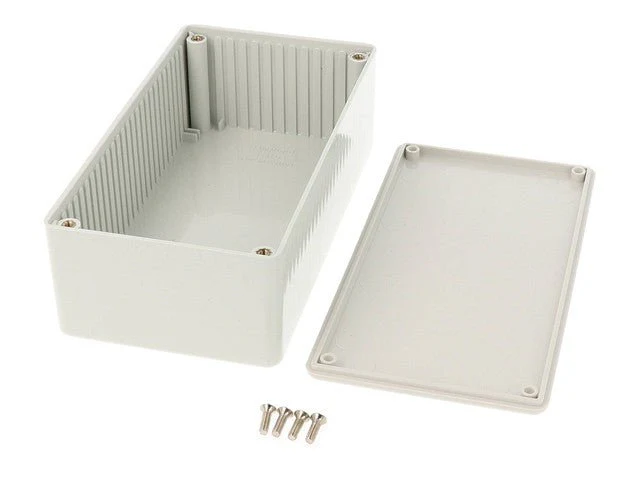

- Ideally suited for vertical mounting of printed circuit boards (internal side walls include molded in card guides - see photo to the right).
- Integral card guides accept 1.5 mm (0.062”) P.C. cards.
- Lap joint construction provides protection against access of dust and splashing water.
- Designed to meet IP54.
- Standard versions are molded from easy to machine flame retardant ABS plastic which carries a UL flammability rating of 94V-0.
- Economy versions are molded from general purpose (not flame-retardant) plastic.
- On standard versions the lid is secured with M3 x 10 mm Phillips machine screws, threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required.
- Economy versions are assembled with self tapping screws into fully plastic posts.
- Black enclosures include black screws, while all others include standard nickel finish screws.
Downloads
Additional Information
| Sub Group | Multipurpose |
| Group | Plastic Enclosure |
| Model | 1591DGY |
| Device | Multipurpose |
| Body Material | ABS Plastic |
| Size | 150mm x 80mm x 46mm |
| Base Colour | Grey |
| Degree of Protection | IP54 |
$3.53
Original: $11.77
-70%1591DGY—
$11.77
$3.53Product Information
