1590WJBK

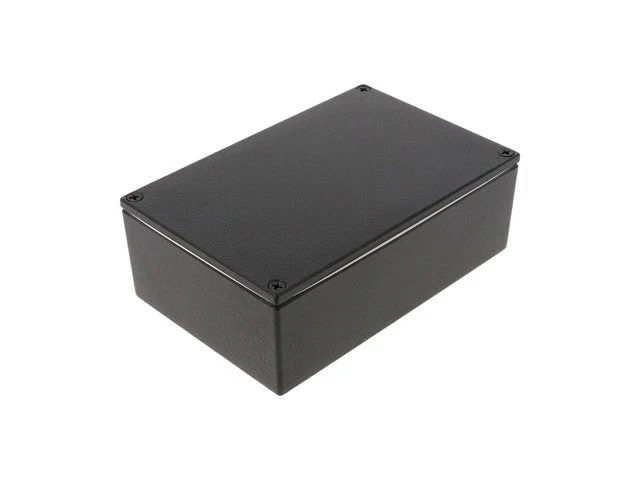

Diecast Aluminium 145 X 95 X 49 Water-tight IP65 Black
Diecast Aluminium Black Enclosure
Feature(s)
- Rugged, diecast aluminum alloy (tough - yet easy to machine), electronic instrument enclosure.
- Lap joint construction provides protection against access of dust and splashing water. Also provides for improved EMI/RFI shielding.
- Unpainted version is vibra finished for a smooth surface with no sharp edges.
- Textured black version is coated with tough polyester powder paint for a lasting finish, even after machining. Black screws are included to enhance appearance.
- Includes screws threaded into factory-tapped holes. Screw type and quantity vary. See details below or in drawings.
- Standard versions are designed to meet IP54.
- Water-tight versions are designed to meet IP65 and include a gasket. Gasket is supplied loose inside the enclosure (not pre-installed).
- Low side wall draft angle (2 degrees or less) for easy P.C. board mounting.
Specifications
- Size L x W x H : 5.71 in x 3.74 in x 1.77 in (145 mm x 95 mm x 45 mm)
- Shipping Weight : 0.72 lbs (0.33 kg)
- UNSPSC : 39121301
- UPC : 62398075897
- REACH Compliant : Yes
- RoHS Compliant : Yes
- Material : Aluminum (Die-Cast Alloy)
- Color : Black
- IP Rating : IP65
- Packaging : shrink wrap
- Type : Die-cast box, water-tight
- Max. P.C. Board Length (mm) : 88.04
- Max. P.C. Board Width (mm) : 138.14
Downloads
Additional Information
| Device | Enclosure |
| Type | Diecast | Aluminium | Black |
