1590DF
Diecast Alum Unpainted 188X120X52MM Bottom Flange IP54

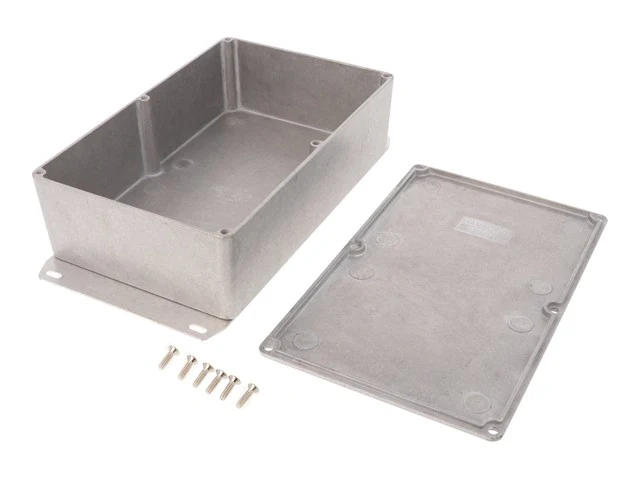

Diecast Aluminium Unpainted Enclosure
Feature(s)
- Rugged, diecast aluminum alloy (tough - yet easy to machine), electronic instrument enclosure.
- Lid screws are exposed for easy enclosure access.
- Bottom flange is an aluminum (type 5052 H32) plate, spot welded onto the base of the enclosure.
- Lap joint construction provides protection against access of dust and splashing water. Also provides for improved EMI/RFI shielding.
- Unpainted version is vibra finished for a smooth surface with no sharp edges.
- Painted version is painted with tough - satin black polyester powder paint for a lasting finish, even after machining. Black screws are included to enhance assembled appearance.
- Quantity SIX (6) 6-32 x 1/2” machine screws secure lid.
- Designed to meet IP54.
- Low side wall draft angle (2 degrees or less) for easy P.C. board mounting.
- Replacement screws for natural finish series, machine type, nickel plated, 6-32 x 1/2” - 1590MS100 - Package of 100
Specifications

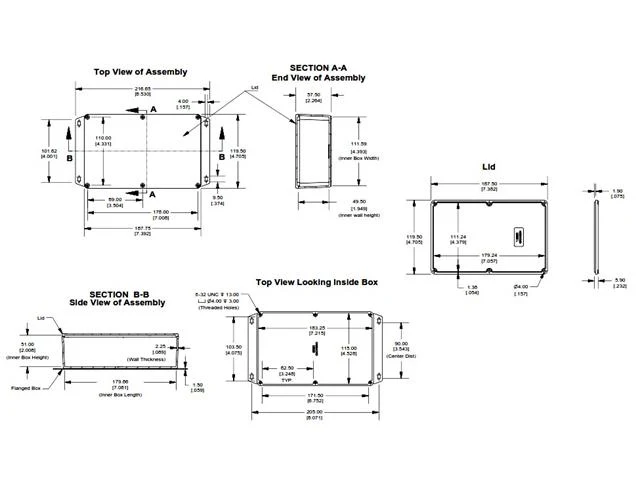

| Size L x W x H | 7.39 in x 4.7 in x 2.2 in (188 mm x 119 mm x 56 mm) |
|---|---|
| Shipping Weight | 1.32 lbs (0.60 kg) |
| Packaging Type | shrink wrap |
| Material | Aluminum (Die-Cast Alloy) |
| Color | Natural Aluminum |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | Die-cast box |
| Max. P.C. Board Length (mm) | 109.61 |
| Max. P.C. Board Width (mm) | 177.86 |
Downloads
Additional Information
| Device | Enclosure |
| Type | Diecast Aluminium | Unpainted |
$8.89
