09-0423-90-07

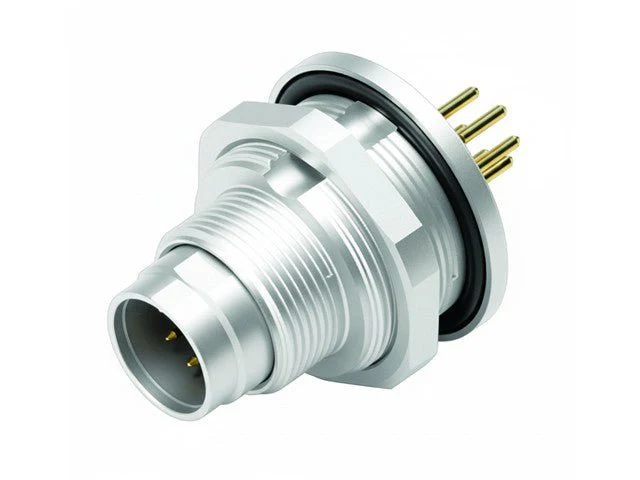

Circular Connector M9 Panel Flange Male 7 Pole Front Mount PCB Contacts IP67
7 Pole Male Circular Connector
Specifications
- Connector design : male panel mount connector
- Version : connector male straight
- Connector locking system : screw
- Termination : dip-solder
- Degree of protection : IP67
- Temperature range from/to : -40 Ā°C / 100 Ā°C
- Mechanical operation : > 500 Mating cycles
- Weight (g) : 6.00
Electrical parameters
- Rated voltage : 125Ā V
- Rated impulse voltage :Ā 1500 V
- Rated current (40 Ā°C) : 1 A
- Insulation resistance : ā„ 10Ā¹ā° Ī©
- Pollution degree :Ā 1
- Overvoltage category : II
- Insulating material group : III
- EMC compliance : unshielded
Downloads
Additional Information
| Device | Connector |
| Type | 7 Pole | Male | Circular |
$7.45
Original: $24.83
-70%09-0423-90-07ā
$24.83
$7.45Product Information
