09-0331-00-12

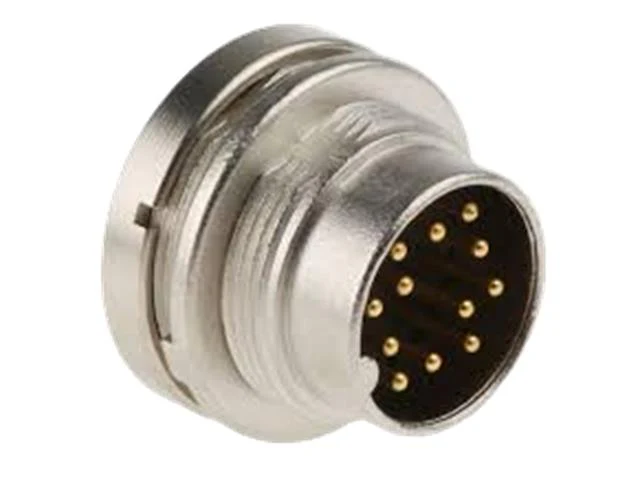

Circ Con M16 Panel Male 12 Pol Soldr Term Front Panel Entry / Rear Fixing Gold Plated Contacts IP40
Male Panel Mount Connector
Specifications
General features
| Part no. | 09 0331 00 12 |
| Connector design | Male panel mount connector |
| Type standard | DIN EN 61076-2-106 |
| Version | Connector pin straight |
| Connector locking system | screw |
| Termination | solder |
| Degree of protection | IP40 |
| Connection cross-section | 0.25 mm² / AWG 24 |
| Temperature range from/to | -40 °C / 85 °C |
| Mechanical operation | > 500 Mating cycles |
| Weight (g) | 11.14 |
| Customs tariff number | 85369010 |
| Country of Origin | DE |
Downloads
Additional Information
| Device | Connector |
| Type | DIN EN 61076-2-106 |
$4.38
Original: $14.59
-70%09-0331-00-12—
$14.59
$4.38Product Information
