09-0123-90-06

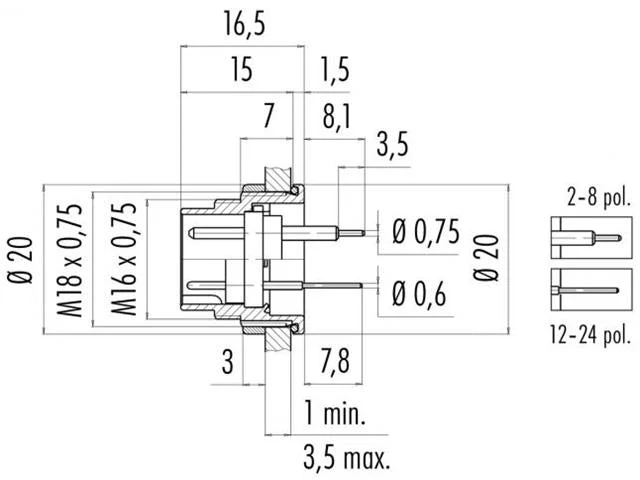

Mini Male Panel Mount Circular Connector 6P Front Fastened M16 DIP Solder Screw Lock IP67
Mini Male Panel Mount Circular Connector
Specifications
- Connector design : male panel mount connector
- Rated current (40 °C) : 5 A
- Connector locking system : screw
- Rated voltage 250 V
- Termination : dip-solder
- Rated impulse voltage : 1500 V
- Upper Limit Temparature : 95°C
- Pollution degree : 1
- Overvoltage category : I
- Cable outlet : 6.0 - 8.0 mm
- Insulating material group : III
- Insulation resistance : ≥ 10¹⁰ Ω
- Lower limit temperature : – 40 °C
- EMC compliance : shielding is not possible
- Customs tariff number : 85369010
- Degree of protection : IP67
- Mechanical operation : > 500Mating cycles
Downloads
Additional Information
| Device | Connector |
| Type | Mini | Male | Panel Mount | Circular |
